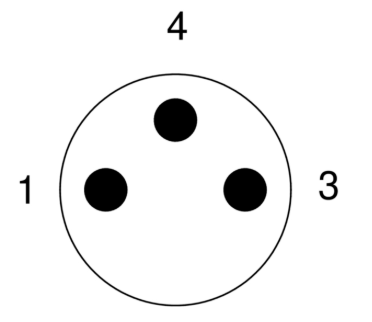

M8 Connector

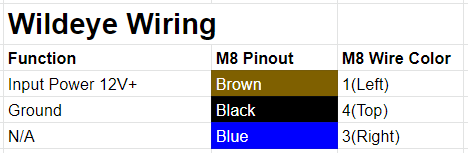

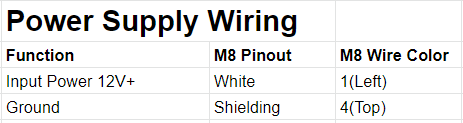

This wiring is for the M8 charging connector for WILD-M-R loggers.
Charging Specification
Minimum Supply Voltage Required: 12V
Maximum Supply Voltage: 24V
Minimum Supply Wattage: 3W
Current: 1 Amp
This wiring is for the M8 charging connector for WILD-M-R loggers.
Charging Specification
Minimum Supply Voltage Required: 12V
Maximum Supply Voltage: 24V
Minimum Supply Wattage: 3W
Current: 1 Amp
