ACC-SEN-SUBM-ABS-S3-D10M-C11M



Part Number - Code

P51288-01 - ACC-SEN-SUBM-ABS-S3-D10M-C11M

Product Description

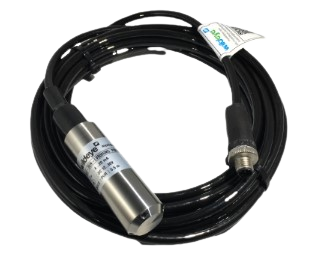

Wildeye EasyLevel submersible pressure sensor.

  • Absolute pressure sensor, max. ~10m H2O @ 1000hPa atmospheric pressure
  • 95kPa-193.06kPa (absolute) @ 0.5% FS
  • 4~20MA
  • 12~30VDC
  • 11m PUR Cable
  • Oring sealed
  • 316SS
  • Fitted with M12 connector

Pinout
M12 pin Core colour Function
1 Red Power
2 - -
3 Green 4-20mA
4 Bare GND
5 - -

Tech specs

 Power draw = 20mA max @ 12V

Cable & Connector

Cable type: PUR

Cable length: 11m

Connector type: M12 5-pin

Compatible Loggers

Wildeye data-loggers and expanders with the following connector types are compatible with this sensor:

  • NACS

Manufacturers documentation

 https://info.mywildeye.com/hc/en-us/articles/6086854180239

Scan to add sensor in app
