ACC-EXP-MAG8000

Part Number

P51292-01

Product Description

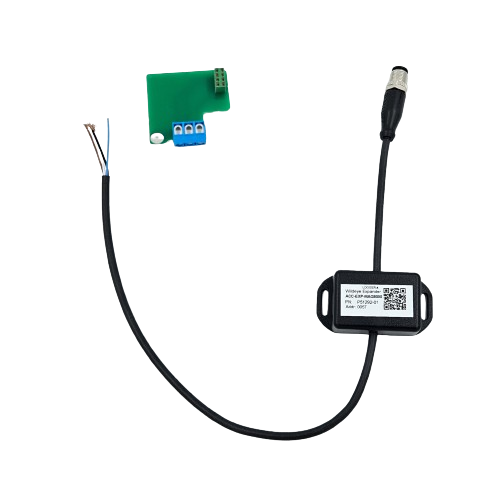

Wildeye expander module to interface with Siemens MAG8000 water meter. Flying lead to MAG8000 PCBA, M12 cable to WILD-M datalogger NACS connector. Includes MAG8000 adaptor PCBA and hardware.

Pinout

M12 Pin (Colour)	Function
Pin 1 (Brown)	Wildeye Rx (connect to Mag8000 Tx)
Pin 2 (White)	Wildeye Tx (connect to Mag8000 Rx)
Pin 3 (Blue)	Pulse counter (connect to Mag8000 pulse output)
Pin 4 (Black)	GND/Common
Pin 5 (Grey)	-

Tech specs

Power draw = TBC

Cable & Connector

Cable type: PUR

Cable length: 1m total length (incl expander box)

Connector types: flying leads

Compatible Loggers

Wildeye data-loggers and expanders with the following connector types are compatible with this sensor:

• NACS

Scan to add sensor in app
